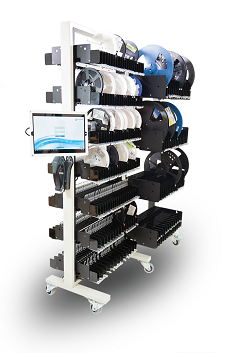

InoAuto Smart Rack Series
Features
- Stores 560 seven-inch reels or 320 thirteen-inch reels
- Lights up to identify the parts required for the kit
- Small footprint
- Intelligent sensors detect where reels are placed
- Daisy-chain multiple units together for increased capacity
- Retrieve reels in less than 4 seconds
- Return reels in less than 8 seconds
- Reduces kitting time from hours to minutes
- Mobile, on wheels
- Accessible from both sides
- Available battery option
- ROI in 3 - 6 months, typically
- Flexible and easy to use
- Easily links to any MRP software
- Wi-Fi & Internet ready
- Available in 7, 10, 13, and 15 inch reels, widths of 8, 12, 16 and 24, 32, 44, and 56mm
- ESD compliant
| Unit | Model Number | Desc. | Reel Count 8mm | Reel Count 12mm | Reel Count 16mm | Reel Count 24mm | Reel Count 32mm | Reel Count 44mm | Reel Count 56mm | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SR700 |
7" reels on 11 trays | 560 | 420 | 350 | 252 | 168 | 140 | 112 | |||||||||||||||
 |
SR130 or SR130-8 (Dual Sided) | 13" reels on 4 trays or 8 trays | 160 or 320 | 120 or 240 | 100 or 200 | 72 or 144 | 48 or 96 | 40 or 80 | 32 or 64 | |||||||||||||||
|
SR150 or SR150-8 (Dual Sided) | 15" reels on 4 trays or 8 trays | 160 or 320 | 120 or 240 | 100 or 200 | 72 or 144 | 48 or 96 | 40 or 80 | 32 or 64 | |||||||||||||||
 |
SR200 SR200-7 | Mixed reels 3 trays of 7” & 2 to 4 trays of 13” or 15” reels |
|
|||||||||||||||||||||
| SIZE | 25” Width x 18”-30” Depth x 65” Height |
| WEIGHT | Less than 100 lbs. |
| Mobile | With ESD Casters |
| POWER REQ. | 110V-230V, 50/60 Hz, less than 150 VA |
| AIR SUPPLY | None required |
| OS | Microsoft Win 10 Pro included |
| SOFTWARE |
- Includes single package, single location control and visibility |
| ESD | Compliant |
| MONITOR | 12” Touchscreen |
| BAR CODE SCANNER | -Wireless or wired |
| OPTIONS |
- Upgradeable to InoView Software |
