SMT Reel Storage

With Inovaxe’s Smart Storage Solutions you can store hundreds of reels per square foot and access your parts in seconds. Each smart location is configured to perfectly fit a desired reel size, allowing you to utilize every cubic inch without any wasted space. Our smart reel storage solutions detect when reels are added or removed, and light up required parts for retrieval using sensors and LEDs found at every location. One controller unit can operate multiple carts or racks, allowing you to expand and increase capacity over time.

Flexible and easy-to-use, our innovative software can be linked with any third part system like an MES or ERP system.

Inovaxe allows you to:

  • Retrieve reels in less than 4 seconds
  • Return reels in less than 8 seconds
  • Reduce kitting time from hours to minutes
  • ROI in 3 – 6 months

Our reel storage carts and racks are Wi-Fi ready on a Windows 10 platform and can be configured for storage of reels 7”–15” in diameter and 8-56mm in width.

Get a Quote
InoAuto - IA Series Smart Cart
InoAuto - Smart Cart

IA Series

Download Brochure

Inovaxe - Innovative Material Handling Solutions
InoAuto - SR Series Smart Cart
InoAuto - Smart Rack

SR Series

Download Brochure

Inovaxe - Innovative Material Handling Solutions
InoAuto - SREX Series Smart Rack
InoAuto - Smart Stationary Stockroom

SREX Series

Download Brochure

Inovaxe - Innovative Material Handling Solutions
InoAuto - IA Series Smart Cart

IA Series Smart Cart

The IA Series Smart cart from Inovaxe stores up to 1,120 reels in less than 4.75 square feet, all with a sleek and modern design. This series also comes in a half-size cart for increased mobility and flexibility. Each unit has doors that keep reels from being removed, and you can add an electronic lock to keep your parts locked inside until needed. With ESD-conductive casters, add a battery to make the unit fully mobile.

Available to store reels 7”-15” in diameter and 8-56mm in width.

Get a Quote

IA Series – Configurations

UnitModel NumberDescriptionReel Count 8mmReel Count 12mmReel Count 16mmReel Count 24mmReel Count 32mmReel Count 44mmReel Count 56mm
IA Series - Configration - IA700 IA7000IA700
IA7000
7" reel size 7 or 14 trays (Half or Full size Cart560 or 1120420 or 840350 or 700252 or 504168 or 336140 or 280112 or 224
IA130
IA1300
13" reel size 4 or 8 trays (Half or Full size Cart)56 or 112120 or 240100 or 20072 or 14448 or 9640 or 8032 or 64
IA Series - Configration - IA150 IA1500IA150
IA1500
15" reel size 3 or 6 trays (Half or Full size Cart)120 or 24090 or 18075 or 15054 or 10842 or 8430 or 6024 or 48
IA Series - Configration - IA200 IA2000IA200
IA2000
Mixed reels 3 trays of 7” & 2 to 4 trays of 13” or 15” reels (Half or Full size Cart)7” 240 or 480

&

13/15” 80 or 160
7” 180 or 360

&

13/15” 60 or 120
7” 150 or 300

&

13/15” 50 or 100
7” 108 or 216

&

13/15” 36 or 72
7” 84 or 168

&

13/15” 28 or 56
7” 60

&

13/15” 20 or 40
7” 48 or 96

&

13/15” 16 or 32

Specifications

SizeHalf Cart 23.5” W x 15” D x 65” H
Full Cart 45” W x 15” D x 65” H
WeightLess than 200 lbs.
MobileWith ESD Casters
Power Requirements110V-230V, 50/60 Hz, less than 150 VA
Air SupplyNone Required
OSMicrosoft Windows 10 Pro included
Software- Includes single package, single location control and visibility
- Add, remove, browse, replenish, & transfer parts
- Pick list upload
- Reports
ESDCompliant
Monitor12” Touchscreen
Bar Code ScannerWireless or Wired
Options- Upgradeable to InoView Software
- Bin location labels
- Software Customization (ERP interface, SMT machine links, and more)

Inovaxe - Innovative Material Handling Solutions

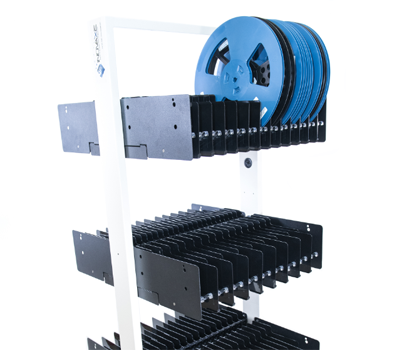

SR Series Smart Rack

The SR series Smart Racks store up to 560 reels in about 3 square feet. Our Smart Racks are easily configurable, modular, and cost-effective, while delivering the same lean benefits of the IA series. Daisy-chain multiple Smart Racks together on one controller to increase capacity or use a battery to make them mobile.

Available to store reels 7”-15” in diameter and 8-56mm in width. This rack can also be customized to include storage for other types of components – tubes, trays, mechanical parts, and more.

Get a Quote

SR Series – Configurations

UnitModel NumberDescriptionReel Count 8mmReel Count 12mmReel Count 16mmReel Count 24mmReel Count 32mmReel Count 44mmReel Count 56mm
InoAuto - SR Series Smart RackSR7007" reels on 11 trays560420350252168140112
InoAuto - SR Series Smart RackSR130 or SR130-8 (Dual Sided)13" reels on 4 trays or 8 trays160 or 320120 or 240100 or 20072 or 14448 or 9640 or 8032 or 64
InoAuto - SR Series Smart RackSR150 or SR150-8 (Dual Sided)15" reels on 4 trays or 8 trays160 or 320120 or 240100 or 20072 or 14448 or 9640 or 8032 or 64
InoAuto - SR Series Smart RackSR200 SR200-7Mixed reels 3 trays of 7” & 2 to 4 trays of 13” or 15” reels7” 240

&

13/15” 80 or 160
7” 180

&

13/15” 60 or 120
7” 150

&

13/15” 50 or 100
7” 108

&

13/15” 36 or 72
7” 84

&

13/15” 28 or 56
7” 60

&

13/15” 20 or 40
7” 48

&

13/15” 16 or 32

Specifications

Size25” Width x 18”-30” Depth x 65” Height
WeightLess than 100 lbs.
MobileWith ESD Casters
Power Requirements110V-230V, 50/60 Hz, less than 150 VA
Air SupplyNone required
OSMicrosoft Win 10 Pro included
Software- Includes single package, single location control and visibility
- Add, remove, browse, replenish, & transfer parts
- Pick list upload
- Reports
ESDCompliant
Monitor12” Touchscreen
Bar Code Scanner-Wireless or wired
Options- Upgradeable to InoView Software
- Bin location labels
- Software Customization (ERP interface, SMT machine links, and more)
InoAuto - SREX Series Smart Rack

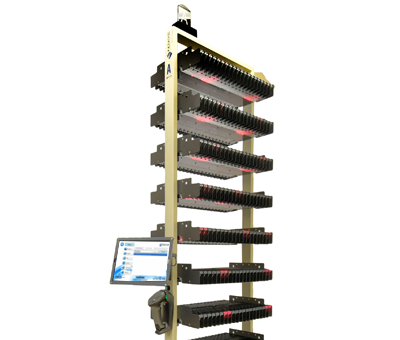

SREX Series Smart Rack

The SREX Smart Racks are our highest density storage option, storing up to 880 reels in only 2.5 square feet. These racks are stationary, so they are perfect for stockrooms, supermarkets, and other permanent storage locations. Our SREX racks are easily configurable, modular, and cost-effective, while delivering the same lean benefits of the IA and SR series. You can daisy chain multiple racks to one controller to increase storage capacity.

Available to store reels 7”-15” in diameter and 8-56mm in width and can also be customized to include storage for other types of components – tubes, trays, mechanical parts, and more.

Get a Quote

SREX Series – Configurations

UnitModel NumberDescriptionReel Count 8mmReel Count 12mmReel Count 16mmReel Count 24mmReel Count 32mmReel Count 44mmReel Count 56mm
SREX Series - Configuration - SREX700SREX7007" reels on 11 trays880660550396380220176
SREX Series - Configuration - SREX130SREX130 or SREX130-12 (Dual Sided)13" reels on 6 trays or 12 trays (15” available on 4 of the trays)240 or 480180 or 360150 or 300108 or 21684 or 16860 or 12032 or 64
SREX Series - Configuration - SREX140SREX140 or SREX140-12 (Dual Sided)Individual smart trays for bagged parts, JEDEC trays and PCB’s

21 inch trays provide one to twelve bin locations per tray in 1.75 inch increments

Specifications

SizeMax 24” Width x 30” Depth x 89” Height
WeightLess than 200 lbs.
MobileMounted to the Floor
Power Requirements110V-230V, 50/60 Hz, less than 150 VA
Air SupplyNone required
OSMicrosoft Win 10 Pro included
Software- Includes single package, single location control and visibility
- Add, remove, browse, replenish, & transfer parts
- Pick list upload
- Reports
ESDCompliant
Monitor12” Touchscreen
Bar Code Scanner-Wireless or wired
Options- Upgradeable to InoView Software
- Bin location labels
- Software Customization (ERP interface, SMT machine links, and more)
